Mesin penggilingan

Zayer

Kondisi: bekas, Tahun pembuatan: 1999, Travel X-axis: 3,400 mm Travel Y-axis: 1,250 mm Travel Z-axis: 2,000 mm Control: TNC-430 PA Table size: 4,700 x 1,200 mm Vertical travel: 500 mm Tool holder: ISO 50 Milling head - swiveling 0.001º/0.001º Main motor: 37 kW Chip conveyor included Handwheel HR-410 Tool changer with 60 positions Automatic milling head 45º Machine weight approx. 35 t - Automatic 45º head - Automatic 45º head 0.001º/0.001º - 45º head max. speed 3,000 rpm - 45º head tool holder ISO-50 - Twist head infinitely variable - Front bearing diameter: 150 mm Ppedpfx Aoydfmcobusl - Station pick up AITEK for 45º and twist head - RENISHAW MP 16+SP2/1

Kondisi: bekas, Pipe bending machine, mandrel bending machine, bending machine for tubes and profiles Pipe bending unit with SIEMENS servo motor and planetary gearbox Year of manufacture: 2003 Bending capacity: max. Ø 20 x 1 mm Bending radius: max. R 70 mm Bending angle: max. 200° - Last used for round tube Ø 15.4 x 0.8 mm, R60 mm - Bending tools and bending dies are interchangeable - Drive of the bending tool via AC servo motor and Alpha helical gear, planetary gearbox - 2-piece bending tool opens and closes by means of hydraulic lifting motion - MERKLE hydraulics - round block cylinder, type 014445, for hydraulic tool opening - Pneumatic height adjustment of the bending die via Festo pneumatic cylinder - Without electrical control unit - Without hydraulic power pack Dimensions (L/W/H): 760 x 400 x 150 mm Weight: approx. 60 kg Good condition Removed from a fully functional special-purpose machine, tested prior to removal. Drive: Brushless permanent magnet servo motor SIEMENS Type: 1FK6061-7AF71-1EG0 Ppodpsd E A I Iofx Abujl Rated torque = MO: 6.4 Nm Rated current = Io: 6.1 A Speed = n. max.: 5500 rpm - Brushless permanent magnet servo motor SIEMENS ----- 5 units in right-handed configuration available. 5 units in left-handed configuration available. The stated price refers to 1 bending unit with servo motor. On request, we also sell individual assemblies of the bending unit. We also offer the electrical components for controlling the servo motor. Hydraulic power packs are also available.

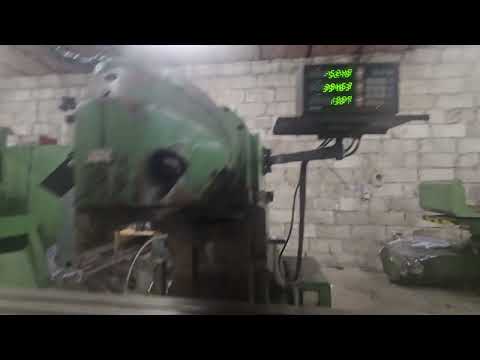

Kondisi: bekas, Fungsionalitas: berfungsi sepenuhnya, lebar meja: 700 mm, panjang meja: 2.032 mm, berat keseluruhan: 5.800 kg, Merek: Zayer Model: 66BM No. seri: 35909 Display posisi 3 sumbu Fagor 30i-M Ukuran meja: 2032 x 700 mm Perpindahan otomatis: - X: 1.524 mm - Y (Carnero): 1.016 mm Psdpfx Abjyc R Nasuepl - Z: 560 mm Kones ISO 50 Jumlah kecepatan: 18 Kecepatan (Min./Maks.): 28-1800 rpm Feed sumbu: - X: 2 - 1.016 mm/menit - Y (Carnero): 2 - 1.016 mm/menit - Z: 1 - 700 mm/menit Rapid traverse: X, Y (Carnero): 2.400 mm/menit Z: 1.600 mm/menit Motor: 15hp (kecepatan) + 3,5hp (feed) Berat: 5.800 kg Dilengkapi manual lengkap dan buku suku cadang.

Kondisi: baik (bekas), Tahun pembuatan: 1995, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 10.000 mm, jarak lintasan sumbu Y: 1.500 mm, jarak gerak sumbu Z: 3.000 mm, - CNC control Heidenhain TNC 415B - Programmable 2-axis NC milling head, 2.5° - Coolant system The machine is sold without the platen table Accessories: Approx. 20 tool holders DIN 2080 with drawbars DIN 69872 Various spare parts such as bevel gears for the milling head and a ball screw for the X-axis. Technical data: X-axis travel (longitudinal): 10,000 mm Y-axis travel (cross): 1,500 mm Z-axis travel (vertical): 3,000 mm Spindle taper: SK50 Spindle speed range (2-step): 35–3,000 rpm Feed rate: 6–10,000 mm/min Rapid traverse X, Y, Z: 10, 15, 10 m/min Main drive power (100% duty cycle): 37 kW Machine weight approx.: 39,300 kg Technical data, accessories, and machine description are not binding. Psdowrzkzjpfx Abuopl

Kondisi: baik (bekas), diameter penggilingan: 1.600 mm, panjang penggilingan: 6.000 mm, Manufacturer: CINCINNATI Model: 60 x 216 Year of manufacture: 1970 Psdpfxovvvw Eo Abuspl Convex and concave grinding 6 steady rests included 2 steady rests hydrostatic Coolant system with magnetic filter Measuring system with 5-arm caliper: Arm 1: Working range 1300 to 1600 mm Arm 2: Working range 1000 to 1300 mm Arm 3: Working range 700 to 1000 mm Arm 4: Working range 400 to 700 mm Specifications Metric US Standard Center height: 787 mm Grinding diameter Ø: 1574 mm Grinding length: 5800 mm Grinding wheel dimensions: 914 x 101.6 x 304.50 mm Grinding wheel speed: 1800 rpm Approximate dimensions: Length: 15,100 mm Width: 5,500 mm Height: 3,550 mm Weight: 120,000 kg Please note: The information on this page has been provided by us to the best of our knowledge and, where possible, obtained from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Consequently, no representation or contractual terms will be constituted. We recommend verifying all critical details independently.

Kondisi: bekas, Tahun pembuatan: 2000, x-Weg 22.000 mm Ppedpfsxvtf Njx Abusl

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1997, jarak pergerakan sumbu X: 2.708 mm, jarak lintasan sumbu Y: 1.513 mm, jarak gerak sumbu Z: 1.259 mm, produsen pengendali: FANUC, model controller: 31i-B, berat keseluruhan: 25.000 kg, kecepatan spindel (maks.): 3.000 rpm, daya motor spindle: 37.000 W, jumlah sumbu: 3, Pusat pemesinan vertikal 3 sumbu Zayer 30KF 3000 ini dibuat pada tahun 1997. Menawarkan konstruksi yang kokoh dan presisi untuk tugas pemesinan yang kompleks. Ideal bagi mereka yang mencari performa andal dari mesin bekas. Hubungi kami untuk informasi lebih lanjut. Keunggulan Mesin Keunggulan Teknis Mesin • Luas meja: 3000x1000 mm • Berat maksimum yang diizinkan di meja: 10.000 kg • Kepala otomatis dengan dua posisi vertikal dan horizontal Informasi tambahan Pedpeyall Dofx Abujpl Mesin masih tersambung listrik

Kondisi: baik (bekas), Tahun pembuatan: 1988, Operating voltage: 380 V Connected load: 7.5 kVA Dimensions: 2725 x 1930 x 1773 mm Machine weight approx. 2500 kg Technical Data – Main data: Table surface: 605 x 300 mm Max. longitudinal table travel (manual): 750 mm Cross table travel: 340 mm Grinding height (min./max., table to new grinding wheel): 22.5 / 322.5 mm Standard magnetic chuck size: 600 x 300 mm Workpiece weight incl. magnet: 420 kg X-Axis / Longitudinal Travel: Podpfx Ajw Dvkaobujpl T-slots (number x width): 3 x 17 mm Table feed, hydraulic: 0.3 – 25 m/min Travel per handwheel revolution: 47 mm Y-Axis / Vertical Feed: Automatic vertical feed – Coarse, 12 steps: 0.001 – 0.03 mm Automatic vertical feed – Fine, 8 steps: 0.001 – 0.01 mm Travel per handwheel revolution (x1/x10): 0.1 / 1.0 mm Graduation per handwheel division (x1/x10): 0.001 / 0.1 mm Spark-out strokes: 0 – 5 Rapid traverse: 400 mm/min Z-Axis / Cross Travel: Automatic cross feed, intermittent: 0.5 – 20 mm Automatic cross feed / rapid traverse, continuous: 0.1 – 1.0 m/min Travel per handwheel revolution: 5.0 mm Graduation per handwheel division: 0.02 mm Standard grinding wheel: Diameter x width: Ø 355 x 38 (50) mm Bore: Ø 127 mm Speed: 1500 rpm Accessories: various grinding wheels Documentation

Kondisi: bekas, Tahun pembuatan: 1998, Empty weight: 22,000 kg Price: On request - Year of manufacture: 1998 Ppsdpfjx Eyyuox Abuel - Documentation available: Yes - CE marking present: Yes - CE certificate available: Yes - Serial number: 28198 - Control: CNC - Horizontal/Vertical: Horizontal - Control system brand: Heidenhain - Power [kW]: 28.0 - Number of axes [pcs.]: 3 - X-axis travel [mm]: 2211 - Y-axis travel [mm]: 1210 - Z-axis travel [mm]: 1508 - Table length [mm]: 2500 - Table width [mm]: 1000 - Tool holder: BT50 - Min. spindle speed [rpm]: 6 - Max. spindle speed [rpm]: 5000 - Positioning accuracy [mm]: 0.005 - Traverse speed [mm/min]: 15000 - Options: Chip conveyor - └ Tool magazine [pcs.]: 7 - Transport weight [kg]: 22000kg Financial information VAT: The stated price is plus VAT VAT/differential taxation: VAT is deductible for business customers Delivery and trade-in possible at any time for all items from the industrial sector Lukas van Rossum

Kondisi: siap digunakan (bekas), Tahun pembuatan: 1989, Data Umum Berat mesin: 25.500–27.000 kg Penggerak Utama Rentang kecepatan spindle: 3.000 rpm Taper alat: ISO 50 Jumlah sumbu: 3 Pedpfx Aex D Ru Rsbujpl Meja Jumlah alur T: 7 Zayer KF 4000 3-axis ini diproduksi pada tahun 1989. Memiliki meja besar berukuran 4.000 × 1.000 mm, mampu menahan beban hingga 10.000 kg. Dilengkapi dengan kecepatan spindle hingga 3.000 rpm dan rentang daya 30–37 kW, menjamin kapabilitas pemesinan yang tangguh. Manfaatkan kesempatan untuk membeli pusat pemesinan universal Zayer KF 4000 ini. Hubungi kami untuk informasi lebih lanjut tentang mesin ini. Jenis Aplikasi Milling

Kondisi: hampir baru (bekas), Tahun pembuatan: 1991, Fungsionalitas: berfungsi sepenuhnya, berat keseluruhan: 35.000 kg, gaya penekanan: 250 t, jenis arus masuk: tiga fasa, daya: 30 kW (40,79 hp), gaya punching: 250 t, tegangan masuk: 200 V, Perlengkapan: dokumentasi / manual, penghadang cahaya keselamatan, AIDA NC2-250(1) 250t Eccentric Press in Excellent Condition /ctA2/ Manufacturer: AIDA Model: NC2-250(1) Press Force: 160t Year of Manufacture: approx. 1991 Stroke Length: 170 mm Shut Height Over Table: (adjustable) 280–400 mm Table Dimensions: 2700 x 760 mm Ram Dimensions: 2100 x 700 mm Electrical Power: 3x200V (!!), 30kW – Japanese standard Net Weight: 35,000 kg Dimensions: 2760 x 2800 x 3980 mm Automatic lubrication system. Automatic cutting oil dispensing – RAZIOL EST-02 Podpju Dxb Tofx Abuopl Optionally available with decoiler and straightening machine.

Tahun pembuatan: 1994, Kondisi: siap digunakan (bekas), Data Umum Ppsdpfx Aox D Iaqobuel Berat mesin: 12.000 kg Unit Kontrol Merek: HEIDENHAIN Model: TNC415 Mesin frais gantry 3 sumbu Zayer ZF 2000 ini diproduksi pada tahun 1994. Memiliki permukaan penjepitan meja yang kokoh sebesar 2000 × 800 mm, dengan perjalanan longitudinal, transversal, dan vertikal masing-masing 1703 mm, 803 mm, dan 863 mm. Mendukung beban meja maksimum hingga 6.000 kg dan menawarkan kecepatan gerak cepat hingga 15.000 mm/menit. Jika Anda mencari kemampuan penggilingan berkualitas tinggi, pertimbangkan mesin Zayer ZF 2000 yang kami tawarkan. Hubungi kami untuk informasi lebih lanjut. Jenis Aplikasi Milling

Kondisi: sangat baik (bekas), Fixed-bed milling machine Zayer model KF 3000 with Heidenhain 355 CNC, equipped with an external computer for CAD/CAM. Table size 3000mm x 1000mm. Travels: longitudinal 2700mm, transverse 1250mm, vertical 1000mm. Rapid feeds: 15,000 mm/min. Huron head, ISO 50. Head speed: 3 ranges, up to 3,000 rpm, variable. Huron head recently overhauled, with replacement of gear set and all bearings in the head. Power: 30 kW. Admissible table load: 10,000 kg. Machine in good condition. Machine weight: 25 tons. Ppsdpfx Aevdv Tcjbuol

Kondisi: sangat baik (bekas), Grinding length 1000 mm Grinding diameter Ø 350 mm Ppedpfx Ask Abxxobusl In very good condition.

Kondisi: sangat baik (bekas), Tahun pembuatan: 1994, Fungsionalitas: berfungsi sepenuhnya, jarak pergerakan sumbu X: 10.000 mm, jarak lintasan sumbu Y: 1.250 mm, jarak gerak sumbu Z: 2.500 mm, Perlengkapan: dokumentasi / manual, Zayer moving column milling machine, horizontal travel 10,000 mm, vertical travel 2,500 mm, ram travel 1,250 mm, spindle 1,800 rpm, 30-position tool magazine, year 1994, Heidenhain 415b control with 15" LCD display replaced last year, spindle taper regrinding scheduled for October 2024 (ISO50), regularly serviced. Currently in operation. Ppsdpfowhd Alex Abusl
