Beli Universal Membosankan Mesin bekas (76.575)

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2015, PUSAT MESIN UNIVERSAL DMG HSC 105 Linear Gedpfjytpgfex Agrouc Tahun 2015 Perjalanan: X 1.050 mm, Y 800 mm, Z 500 mm Kontrol: Heidenhain iTnc 530 Kecepatan spindle: 28.000 rpm ATC: 32 alat, HSK-A63 Meja: Ø900 mm Sumbu NC B: -10° ~ +110° Sumbu NC C: 360 x 0,001° Hand-wheel elektronik Konveyor serpihan Sistem pengukuran langsung.

Kondisi: siap digunakan (bekas), Tahun pembuatan: 2011, VF - 2YT Tahun 2010 & 2011 Perjalanan S.A.E METRIK Sumbu X: 30,00 inci (762 mm) Sumbu Y: 20,00 inci (508 mm) Sumbu Z: 20,00 inci (508 mm) Jarak Hidung Spindel ke Meja (~maks): 24,0 inci (610 mm) Jarak Hidung Spindel ke Meja (~min): 4,0 inci (102 mm) Spindel S.A.E METRIK Daya Maksimal: 30,0 hp (22,4 kW) Kecepatan Maksimal: 10.000 rpm Kopling: BT40 ATC 24 posisi Pelumasan Bantalan: Injeksi Udara/Oli Pendinginan: Pendingin Cairan Dilengkapi Meja Putar RT-160 dan RT-160-2 Gsdpfxsx Hc Uqs Agrsuc Dilengkapi sistem pengukur alat 2 unit

Kondisi: sangat baik (bekas), Tahun pembuatan: 1993, 1 mesin frais universal bekas, kondisi sangat baik, dari lembaga pelatihan, dengan indikator digital 3 sumbu ELESTA, kecepatan tinggi hingga 3.000 rpm, pinol bor, pengumpanan dan gerakan cepat tanpa tingkat pada semua 3 sumbu. Data teknis: - Dudukan spindle, vertikal: SK 30 - Rentang putaran: 265 – 3000 rpm - Daya penggerak: 1,5 / 2 HP Guodpfxszdbyxj Agroc - Dudukan spindle, horizontal: SK 30 - Rentang putaran: 50 – 1500 rpm - Daya penggerak: 3 / 4,2 HP - Meja kerja: 800 x 200 mm - Gerak longitudinal sumbu X, otomatis: ±600 mm - Gerak lateral sumbu Y, otomatis: ±200 mm - Gerak vertikal sumbu Z, otomatis: ±400 mm - Jarak antara meja dan spindle milling: 300 mm - Kecepatan pengumpanan tanpa tingkat: 30 - 340 mm/menit - Gerakan cepat: ya - Dimensi (P x L x T): ±1300 x 1250 x 1800 mm - Berat: 900 kg Aksesori / Ciri-ciri khusus: • Indikator digital 3 sumbu ELESTA Visulesta 2E • Kepala milling vertikal SK 30 dengan kecepatan tinggi 3.000 rpm + pinol bor, dapat diputar kanan-kiri • Perangkat milling horizontal SK 30 • Gerakan cepat dan pengumpanan pada semua 3 sumbu, pengumpanan dapat diatur tanpa tingkat melalui potensiometer di panel kontrol • Meja kerja dapat diputar kanan-kiri dengan opsi penggerak untuk pembagi • Unit pendingin • Motor utama 2 tahap • Sistem pelumasan sentral Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany

Kondisi: bekas, Tahun pembuatan: 2010, x-travel 800 mm y-travel 1,050 mm z-travel 800 mm Control: Siemens 840D solutionline Max. spindle speed: 10,000 rpm Main spindle drive power: 44 kW Max. torque: 288 Nm Tool holder: HSK-A 100 DIN 69893 Swivel range: -10° / +180° Table clamping surface: dia. 900 x 700 mm Max. table load: 1,500 kg Distance spindle nose - table (horizontal): 50 - 850 mm Distance spindle nose - table (vertical): 150 - 950 mm Table rotation speed: 35 rpm Rotatable C-axis: 360° Number of tool stations: 120 positions Tool holder: HSK-A 100 Max. tool diameter: 110 mm Max. tool diameter with adjacent pockets free: 230 mm Max. tool length: 550 mm Max. tool weight: 30 kg Gjdpfx Agozc Rqwjreuc Tool change time: 5.4 sec Rapid traverse (X / Y / Z): 60 m/min Rapid traverse B-axis: 23 rpm Acceleration (X / Y / Z): 7 / 6.5 / 6.5 m/s² Feed force (X / Y / Z): 13 / 13 / 9 kN Machine weight approx. 13.0 t Space requirement approx. 6.0 x 5.5 x 3.7 m Total power requirement: 80 kVA 5-axis Universal Machining Center DMG DECKEL MAHO - DMU 80 P duoBLOCK - CNC-controlled swivel milling head / gear-driven spindle (B-axis) - NC rotary table (C-axis) - Tool identification - 3D machining, 3D tool compensation - TRANSMIT cylindrical surface transformation (milling of cylindrical tracks) - CompCad compressor function for high-speed machining - WITHOUT tools

Tahun pembuatan: 2002, Kondisi: baik (bekas), With Heidenhain TNC 124 X-axis travel: 700 mm Y-axis travel: 500 mm Z-axis travel: 500 mm Spindle taper: SK40 Spindle speed range: 63–3150 rpm Table size approx. 900 x 500 mm Weight approx. 2500 kg Gjdpfx Ageinukmorjuc Machine fully checked prior to delivery – Spare parts service

Kondisi: baik (bekas), Tahun pembuatan: 1990, 1 used universal tool milling machine Manufacturer: Mikron Model: WF 2 SA Year of manufacture: 1990 Equipped with Heidenhain Active Digital Readout TNC 114 Infinitely variable feed Work lamp Coolant system Travel (X / Y / Z): 420 / 250 / 345 mm Guedpfxerywgzs Agrjc Spindle speeds: 50 – 2240 rpm Clamping surface: 635 x 250 mm Feed rate in 3 axes: 0 – 750 mm/min Rapid traverse in 3 axes: 1400 mm/min Tool holder: ISO 40 Vertical/horizontal quill extendable Dimensions (approx.): 1.2 x 1.2 x 1.6 m Weight (approx.): 1200 kg

Kondisi: baik (bekas), Tahun pembuatan: 2008, 1 pusat pemesinan vertikal bekas Merek: Deckel Maho Tipe: DMU 80 monoblock Tahun pembuatan: 2008 Kontrol: ITNC 530 Detail Teknis Perjalanan sumbu X: 980 mm Perjalanan sumbu Y: 630 mm Perjalanan sumbu Z: 630 mm Kontrol: iTNC 530 Kebutuhan daya total: 10 / 15 kW Berat mesin sekitar: 9,5 t Kebutuhan ruang sekitar: 4*4*2,5 m Informasi tambahan Perlengkapan: Handwheel elektronik Mode operasi 4 Kepala frais putar manual Motor spindle 12.000 rpm SK 40 / penjepit DIN 69872 Majalah alat 32 posisi Meja tetap 1250 x 700 mm Konveyor serpihan Guedexa Eudjpfx Agroc Perangkat pendingin

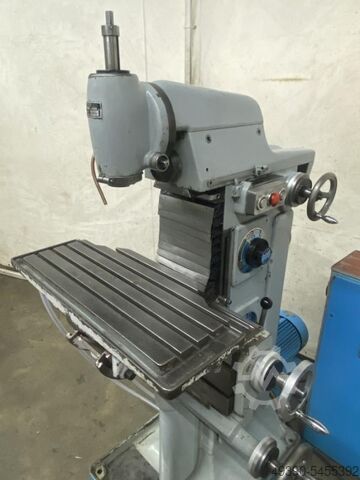

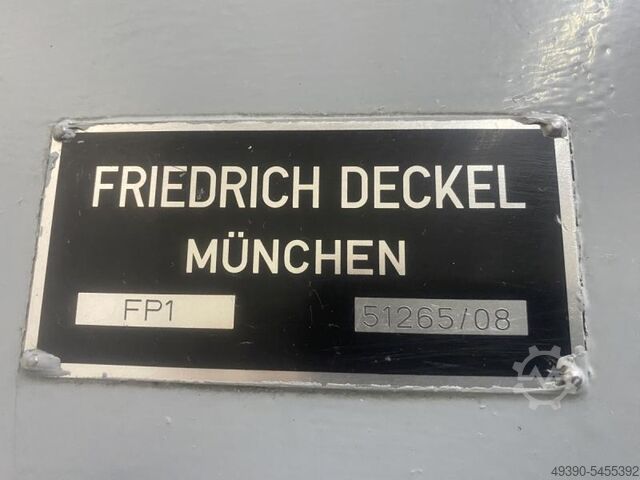

Kondisi: baik (bekas), Tahun pembuatan: 1995, deckel-maho-fp1-1995 Guedpozamw Iefx Agrec

Kondisi: bekas, Tahun pembuatan: 1989, Pergerakan x 580 mm Pergerakan y 380 mm Pergerakan z 360 mm Kebutuhan daya total 6 kW Gedpfjzczfxsx Agreuc Berat mesin sekitar 1,5 t Kebutuhan ruang sekitar 1.800x2.130x1.980 m

Kondisi: sangat baik (bekas), Tahun pembuatan: 2002, jam operasional: 23.286 h, Fungsionalitas: berfungsi sepenuhnya, HEIDENHAIN iTNC530 Guedpfxoxy Af Hs Agrjc 1. Kapasitas & Sumbu • Pergerakan memanjang (X): 2800 mm. • Pergerakan melintang (Y): 2200 mm. • Pergerakan vertikal (Z): 800 mm. • Kecepatan kerja: 35.000 mm/menit. • Dimensi meja: 2500 x 1200 mm. 2. Spindel • Kecepatan maks.: 18.000 rpm. • Dudukan alat: HSK 63. 3. Sistem Perkakas • Kapasitas majalah: 40 posisi. • Pemantauan alat: Probe deteksi patah alat termasuk. Dimensi mesin (P x L x T): 12.434 x 4.700 x 4.622 mm. Tegangan suplai: 400 Vac. Frekuensi: 50 Hz. Konsumsi arus: 116 A.

Kondisi: bekas, Tahun pembuatan: 1998, Detail Teknis: Perjalanan sumbu x: 2500 mm Perjalanan sumbu y: 935 mm Perjalanan sumbu z: 1000 mm Bidang meja: I 1615 x 800 mm Bidang meja: II 800 x 800 mm Taper spindle ISO: 50 Rentang putaran spindle frais: 60 – 3000 rpm Kecepatan feeding: 1 – 3000 mm/menit Kecepatan rapid: 10 m/menit Total kebutuhan daya: 45 kW Berat mesin sekitar: 18,5 t Kebutuhan ruang sekitar: 5 x 5 x 4 m dengan kontrol CNC HEIDENHAIN TNC 426 Gujdjzc I Ndjpfx Agrjc Kepala frais universal – poros C otomatis horizontal-vertikal – sudut menengah dapat diatur manual Meja II berfungsi sebagai poros B (meja putar) Sistem pendingin cairan dan konveyor serpihan

Kondisi: bekas, Tahun pembuatan: 1999, Detail teknis: Gedpfx Aov Rdzbogrsuc Gerakan x: 2000 mm Gerakan y: 1500 mm Gerakan z: 1460 mm Motor spindle milling: 35/30 kW Taper spindle ISO: 50 Kecepatan spindle: 24 - 3000 rpm Luas meja: 1350 x 1550 mm Kapasitas beban meja: 6 t Kecepatan feeding: 10 - 3000 mm/menit Kecepatan pemindahan cepat: 10 m/menit Kebutuhan daya total: 48 kW Berat mesin sekitar: 24 t dengan kontrol CNC HEIDENHAIN TNC 426 Sumbu B meja putar 360° Kepala milling putar otomatis horizontal - vertikal Berbagai aksesori

Kondisi: sangat baik (bekas), Tahun pembuatan: 2006, Sumbu X: 1.350 mm Sumbu Y: 1.150 mm Sumbu Z: 895 mm Sumbu A: +16 hingga -120 derajat Meja putar: diameter 1.100 x 1.000 mm Ukuran maksimal benda kerja: 1.000 x 1.000 x 500 mm Beban meja maksimal: 1.600 kg Gsdpfx Agjzclk Sjrsuc Taper alat: HSK - A63 Penukar alat: 46 posisi Kecepatan spindel: 24.000 rpm Kontrol: Heidenhain ITNC 530 Kebutuhan ruang (termasuk bukaan pintu): 5.605 x 4.290 x 3.159 mm Berat: 12.500 kg Termasuk pendingin internal tekanan tinggi (IKZ) 40 bar Termasuk dokumentasi

Kondisi: bekas, Tahun pembuatan: 1996, de-to-hu_it_lt_lv_nb_nl_pl Guodpfx Ajy Dh U Degrsc

Kondisi: sangat baik (bekas), Tahun pembuatan: 2014, jam operasional: 8.000 h, CNC control: HEIDENHAIN TNC640 Axes Travel X-axis mm: 1,800 Travel Y-axis mm: 1,800 Travel Z-axis mm: 1,210 A-axis indexing degrees: -15° to +105° Worktable Pallet dimensions mm: ø1,400 x 1,200 Spindle Max. spindle speed rpm: 15,000 Tool system Tool holder: HSK-A100 Number of tools in magazine: 92 Machine operating time: Gjdpsv Eqqxsfx Agrjuc Powered-on hours: 17,991 Spindle operating hours: 8,028

Kondisi: sangat baik (bekas), 5-axis machining center with swiveling milling head, pallet station, tool calibration, thermal compensation, workspace extraction system, and much more. Year of manufacture: 2016 Spindle hours approx. 1,500 h (after spindle replacement at the beginning of 2025) Control: - Heidenhain iTNC 530 HSCI - Heidenhain DCM collision monitoring - Heidenhain HR 410 handwheel - Swiveling console with 19" monitor - Teleservice via LAN/WLAN Travel range: - X-axis: 1,000 mm, Y-axis: 1,100 mm, Z-axis: 810 mm - NC rotary table diameter 1,000 x 800 mm, swing circle 1,350 mm Milling head: Guodoxhg Dijpfx Agrec - Automatic horizontal/vertical swivel head - Fully-fledged infinitely variable NC axis from -1° to +90° - Air blast through spindle - External cooling via nozzle ring Drive power: 38 kW (100% duty cycle) Speed: 16,000 rpm Torque: 135 Nm at 40% duty cycle Spindle taper: HSK 63-A Media supply: - Internal coolant supply 50 bar – capacity 28 l/min - Paper band filter with additional fine filter - Pressure regulation of individual tools during program run Tool changer: - Rack magazine with 73 stations (expandable with additional racks) - Swiveling dialog control panel - Drawer for inserting and removing tools from the tool racks Tool measurement: - 3D wireless touch probe m&h 20.00-Multi, software adaptation for HSK 63-A - Incl. Kinematics-Opt, suitable for iTNC control, and calibration sphere on magnetic stand Pallet changer: - 2-station pallet unit, pallet diameter 1,000 x 800 mm, hole grid 100 x 100 mm, hardened drill sleeves Ø 16 mm - Rotary table unit incl. zero-point clamping system, loading station accessible by crane. - Pallet changing unit protected by enclosure. Special features: - Micro-Epsilon for detection and dynamic compensation of thermally induced spindle growth Chip conveyor: - Scraper belt conveyor, longitudinal arrangement to the machine bed - Chip discharge height 1,100 mm Machine enclosure: - Full-space protective guarding with large angle door for crane loading and quick access door - Easy removal of chips from working area Extraction system: - Oil and emulsion mist extraction, mechanical air filter, extraction rate 1,800 m³/h Rotary viewing window: - Viewing window in the machine door integrated into enclosure Camera inside the work area: - Monitor and keyboard at the machine control panel allow observation of rear-side machining Machine data: - Space requirements (excluding service areas): LxWxH approx. 4,791 mm x 4,100 mm x 4,791 mm (incl. extraction system) - Machine weight approx. 19,700 kg - Total weight incl. all equipment, max. workpiece load, fully equipped magazine, and all operating fluids: approx. 27,730 kg - Connected load: 50 kVA, 400V, 50/60 Hz This machining center, featuring exceptionally practical and high-quality equipment, is in excellent condition. It delivers the familiar “Swiss precision.” The machine does not have any outstanding maintenance or repair issues—in fact, thanks to the nearly new milling spindle, the REIDEN RX 10 5X is well-prepared for long-term use. Technical modifications and errors excepted.

Kondisi: bekas, Tahun pembuatan: 2003, Technical details: X-axis travel: 2300 mm Y-axis travel: 1200 mm Z-axis travel: 600 mm Spindle speed: 30–10,000 rpm Spindle torque: 254 / 159 Nm Control: HEIDENHAIN TNC 430 Tool holder: SK 40 Tool changer: 60 positions Spindle power: 40 / 25 kW Fixed worktable: Clamping surface: 1,100 x 1,100 mm Rotary table: 1,100 x 1,100 mm Rapid traverse: 30 m/min Total power requirement: 69 kVA Machine weight approx.: 20 t Universal machining centre with indexing head (2.5°), NC rotary table, max. table load 1,500 kg, table height extension 150 mm, thru-spindle coolant 30 bar, belt filter, electric handwheel, swarf conveyor, automatic sliding doors, flushing gun, no probe Approx. 81,400 h main switch ON Approx. 72,200 h control ON Gjdpfx Agjwltwmerjuc Approx. 26,700 h program run ON Machine powered up, ready for demonstration

Kondisi: bekas, Tahun pembuatan: 2001, x-perjalanan 300 mm y-perjalanan 200 mm z-perjalanan 350 mm Permukaan penjepitan meja 600 x 200 mm Kepala spindel SK 30 Kecepatan spindel 80 - 2200 rpm Feed sumbu X 50 - 550 mm/menit Feed sumbu Y 50 - 550 mm/menit Perjalanan cepat 1500 mm/menit Stroke pinol 45 mm Gusdpfx Aszczdhsgrsc Kepala vertikal dapat diputar +/- 90° Kebutuhan daya total 1,4 kW Berat mesin sekitar 500 kg Dimensi mesin P x L x T 1,50 x 1,20 x 1,60 m Aksesori: Layar digital 3 sumbu HEIDENHAIN, meja tetap, kepala vertikal yang dapat diayunkan dengan pinol yang dapat ditarik keluar, bantalan lawan, arbor frais pendek dan panjang, sistem pendingin

Kondisi: bekas, Tahun pembuatan: 2003, x-lintasan 800 mm y-lintasan 700 mm z-lintasan 600 mm Kecepatan putar 12000 1/menit Kontrol Heidenhain Godsy A Tdnspfx Agrouc Kebutuhan daya total 59 kW Berat mesin sekitar 10,6 t

Kondisi: baik (bekas), Tahun pembuatan: 2006, Fungsionalitas: berfungsi sepenuhnya, Detail Teknis Perjalanan sumbu x: 2500 mm Perjalanan sumbu y: 920 mm Gsdpozclwljfx Agrouc Perjalanan sumbu z: mm Kontrol: Heidenhain iTNC 530 Kebutuhan daya total: 92 kVA Berat mesin sekitar: 25,6 t Kebutuhan ruang sekitar: 10,3 x 6,2 x 3,3 m Informasi tambahan Jam operasi: 113475 Jam spindle: 58183 (per Juni 2026) Kontrol CNC Heidenhain iTNC 530 Perlengkapan: Penukar alat Konveyor serpihan Perangkat ukur alat Handwheel elektronik Panel kontrol listrik dengan pendingin udara Mesin dijual tanpa peralatan penjepit, ragum, dan perkakas.

Kondisi: baik (bekas), Tahun pembuatan: 2007, Fungsionalitas: berfungsi sepenuhnya, de-hu-001 Gujdpfx Aszb I Tgogroc

Kondisi: baik (bekas), Fungsionalitas: berfungsi sepenuhnya, 26047 Gedpfx Ajzb I Nzegrjuc

Kondisi: sangat baik (bekas), Tahun pembuatan: 2016, Fungsionalitas: berfungsi sepenuhnya, gaya penjepit: 700 kN, Perlengkapan: dokumentasi / manual, Seologica-Steuerung Gjdoygtqujpfx Agreuc

Kondisi: bekas, Tahun pembuatan: 1999, de_to_hu_it_lt_lv_nb_nl_pl Gsdoy Ty R Aopfx Agrsuc

Kondisi: baru, Tahun pembuatan: 2026, Industrial Metal Lathe CORMAK TORNADO 460x2000 Main features: - Versatile applications: This lathe is perfect for a wide range of tasks, including external and internal turning, taper cutting, metric, inch, module, and DP threading, polishing, drilling, and broaching. - Rigid construction: The 300 mm wide cast iron bed is hardened and precisely ground, providing excellent vibration reduction and stable working conditions even under heavy loads. - Digital accuracy: The machine is equipped with a digital readout on two axes (longitudinal and cross), displaying precise displacement values on-screen thanks to optical linear scales. - High-quality spindle: Reinforced bearing system in the spindle and a large 82 mm bore ensure optimal performance. Comes with a 250 mm 3-jaw chuck, a 320 mm 4-jaw chuck, and a 5.5 kW motor. - Efficiency and productivity: Rapid longitudinal and cross feed system with joystick control significantly reduces machining times. Hardened and ground gears in the spindle gearbox ensure durability and reliability for years. - Comprehensive threading capability: The lathe supports metric, inch, module, and DP right- and left-hand threads, with parameter adjustments possible without changing gears, making operations faster and more convenient. Threading range includes: metric (41) from 0.1 to 14 mm, inch (60) from 2 to 112 T.P.I., module (34) from 0.1 to 7 M.P., and DP (50) from 4 to 112 D.P. - Precise thread counting: Equipped with a thread chasing dial, allowing for quick repositioning of the carriage after disengaging the leadscrew nut. - Ergonomic and easy to use: The intuitive gearbox control panel enables rapid spindle speed and automatic feed adjustments. - Machining large workpieces: The removable bed bridge allows turning of large workpieces up to 690 mm in diameter and 240 mm in length (with the bridge removed), significantly increasing the machine’s capabilities. Technical specifications: Swing over bed: ø460 mm Swing over cross slide: ø274 mm Swing in gap (diameter x length): 690 mm x 240 mm Centre height: 230 mm Distance between centres: 2000 mm Bed width: 300 mm Max tool cross-section: 25 x 25 mm Cross slide travel: 290 mm Top slide travel: 120 mm Spindle bore: ø82 mm Spindle nose: D1-8 Spindle taper: ø90 (1:20) Number of spindle speeds: 12 Spindle speed range: 25-2000 rpm Lead screw diameter and pitch: ø35 mm x 6 mm Inch threads (pitch): 2-112 TPI (60) Metric threads: 0.1-14 mm (41) DP threads: 4-112 D.P. (50) Module pitches: 0.1-7 M.P. (34) Longitudinal feed: 0.031-1.7 mm/rev (42) Cross feed: 0.014-0.784 mm/rev (42) Tailstock quill travel: 120 mm Tailstock quill diameter: ø60 mm Tailstock taper: MT No. 4 Spindle drive motor: 5.5 kW Coolant pump motor: 0.09 kW Gsdpfsv E Eiiex Agrjuc Machine dimensions (LxWxH): 3220x1040x1340 mm Weight: 2785 kg
